Description
Vanquish VS410 Builders Kit
Unassembled Builders Kit
Wheels, Tires, Body, Bumpers and Electronics are not included. See information below.
TRAIL
DEFINE YOUR OWN PATH
F10 Portals
SCALE STYLE WITH PERFORMANCE
VFD Twin
VERSITILE AND PROVEN TRANSMISSION

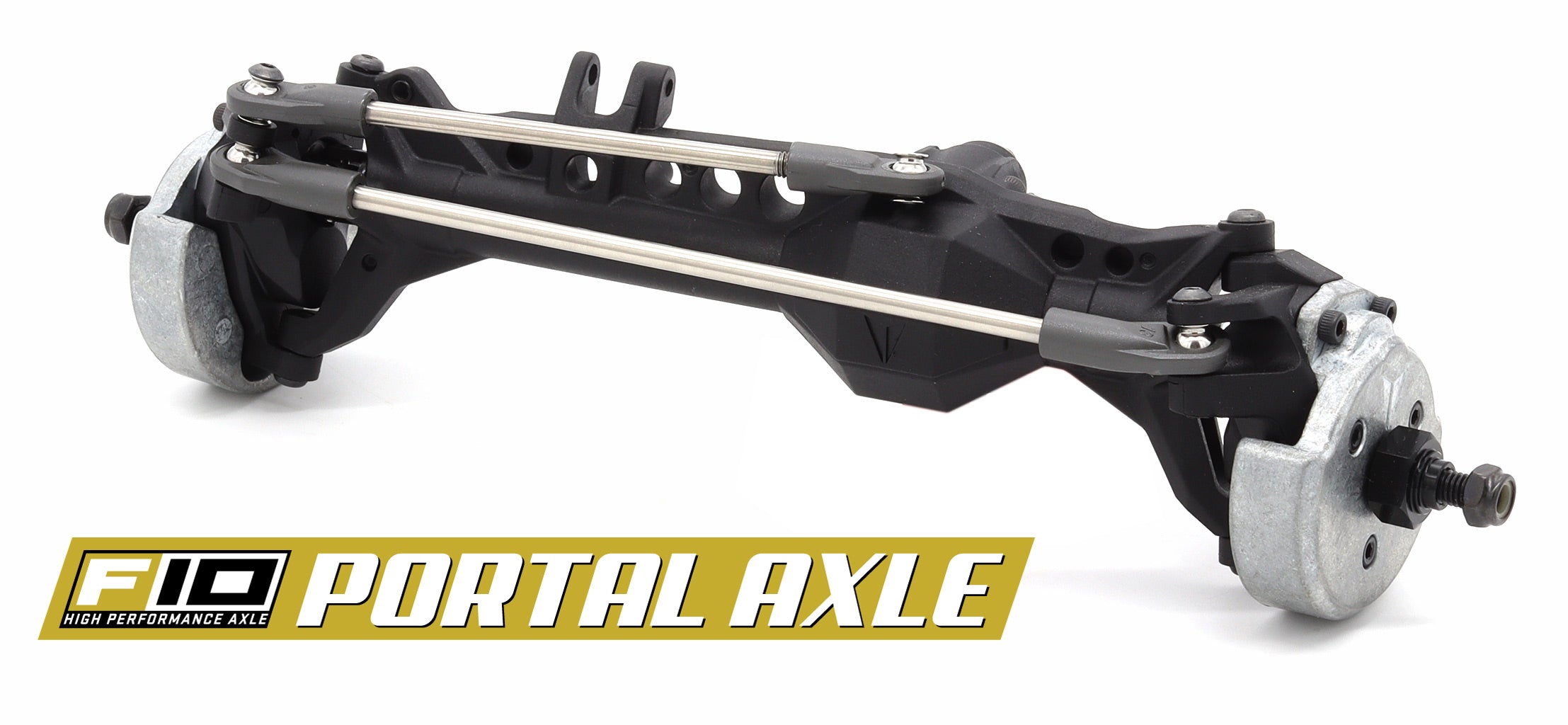

F10 Portal AXLES
The F10 Portal Axles are widely praised for their exceptional durability, precise engineering, machined gears and smooth performance, making them a top choice among enthusiasts.

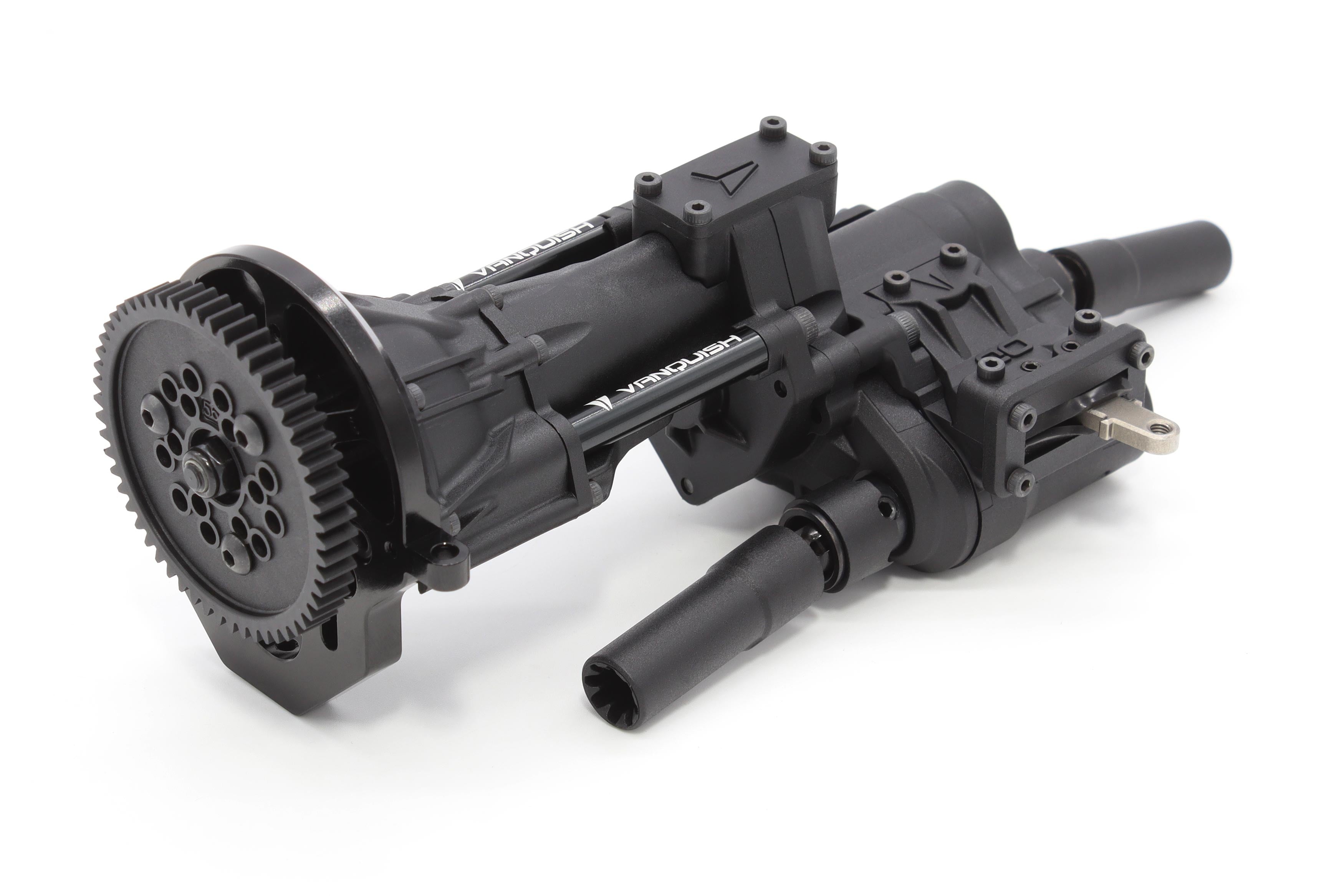

Ultimate VFD Twin transmission
The VFD Twin Transmission offers on-the-fly selectable overdrive (6.5% or 46%) and a 3-position dig. It’s built for durability with machined internal gears and chromoly shafts for smooth, reliable power transfer and a machined motor plate, bearing plates, and posts for maximum strength and stability under load.
Drivetrain
The VS4-10 Portal Axle Builders Kit features a high-performance drivetrain with the VFD Twin Transmission and F10 Portal Axles, delivering unmatched control, durability, and efficiency. With on-the-fly selectable overdrive, a 3-position dig unit, and precision-machined gears throughout, this drivetrain is built to handle the toughest terrain with smooth, reliable power transfer.
VS4-10 DRIVETRAIN

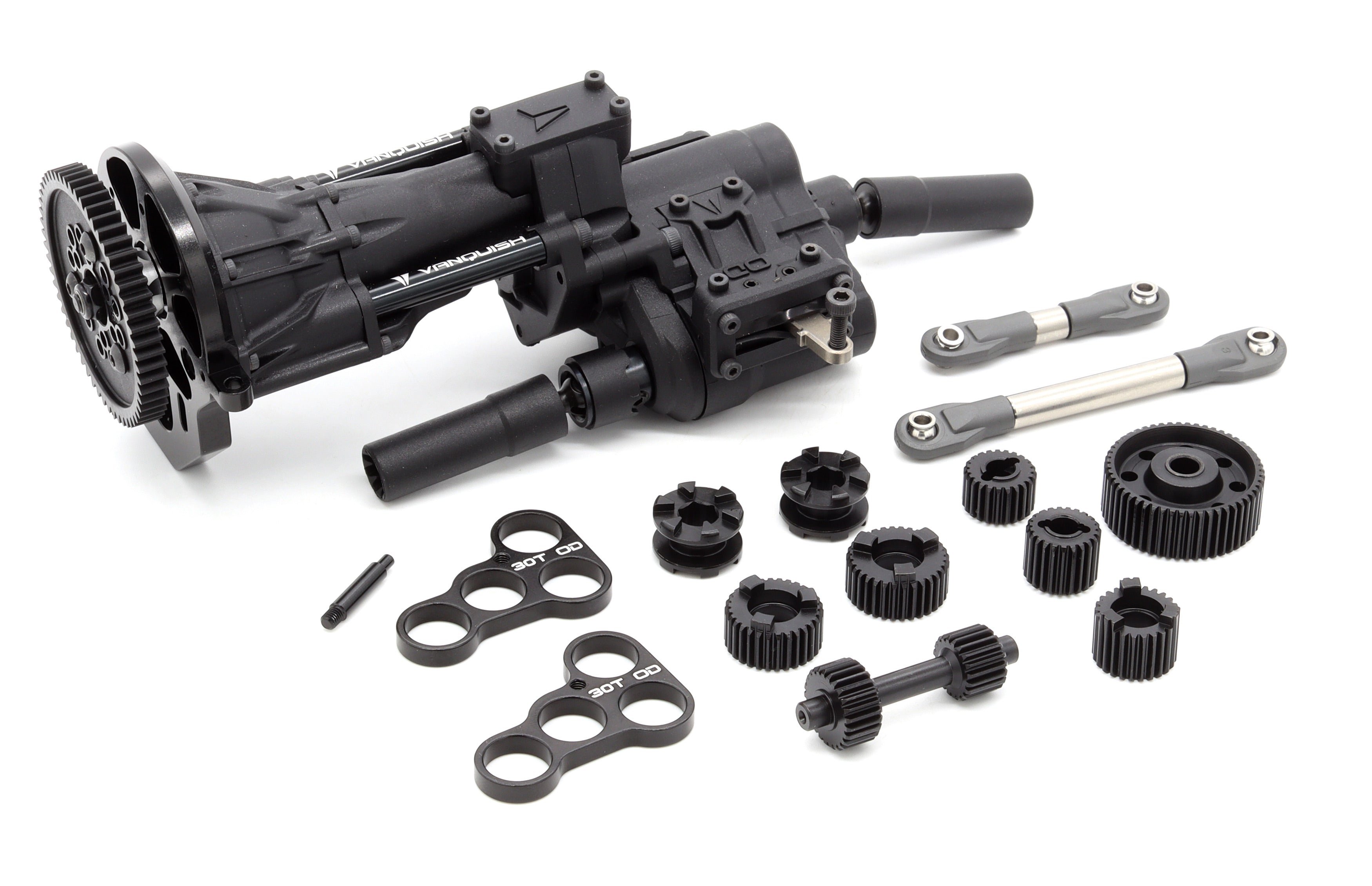

VFD TWIN TRANSMISSION

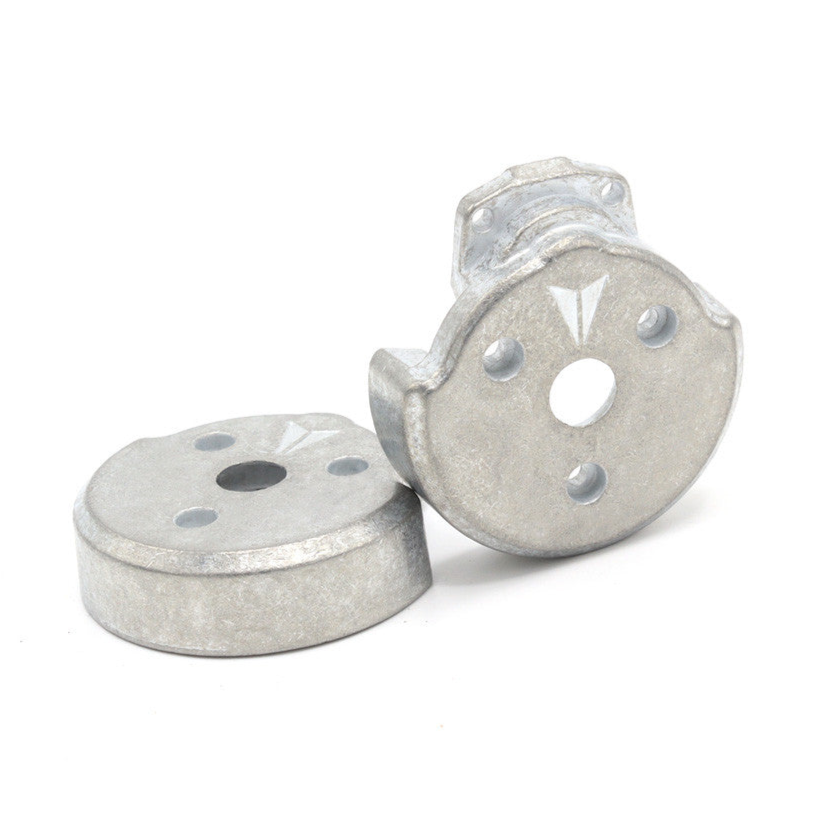

Heavy Alloy Knuckle Weights
F10 Portal Axles

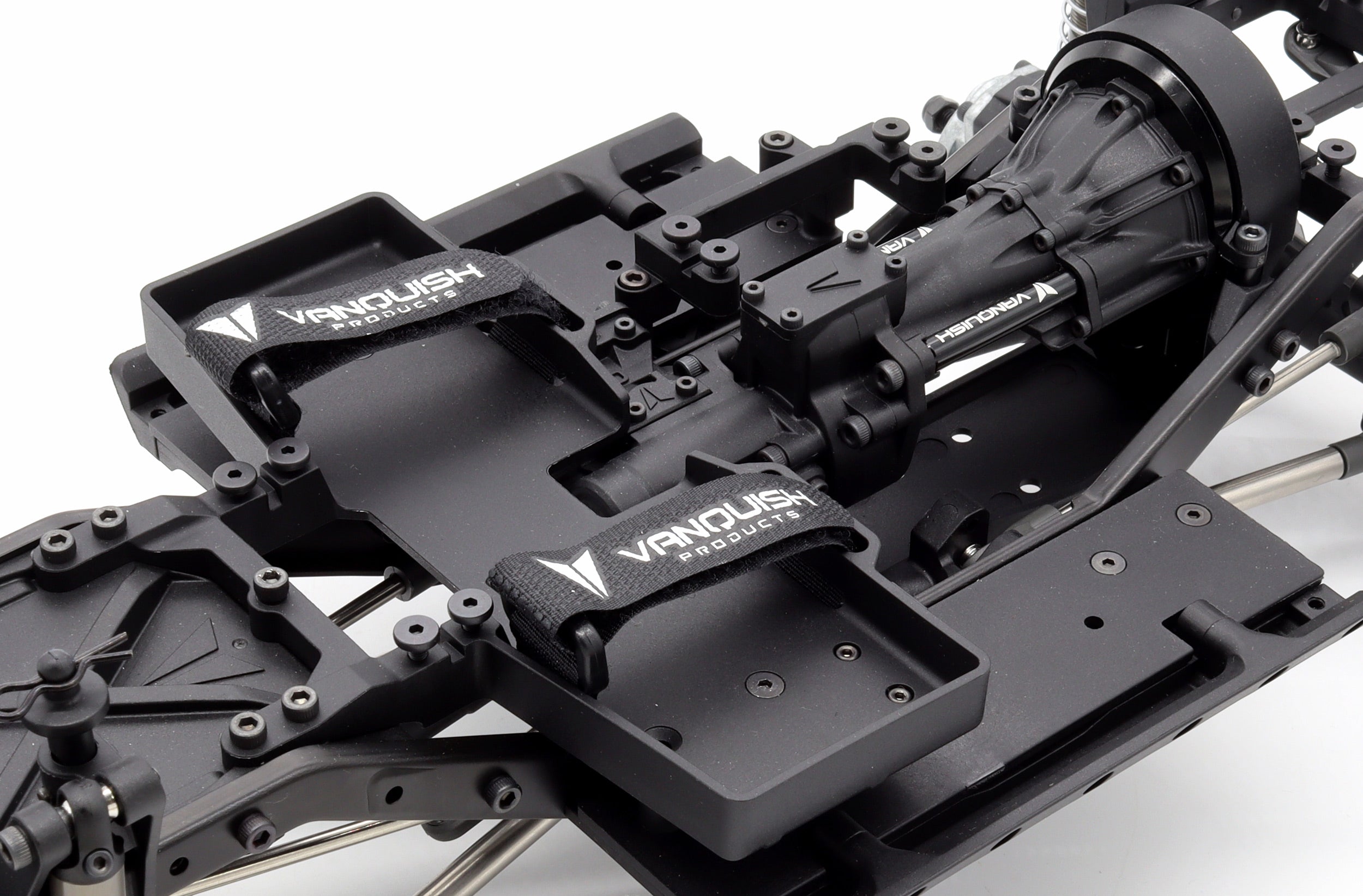

BATTERY & SERVO LOCATIONS
The versatile battery tray accommodates most batteries, including hard case LiPo and standard stick pack sizes, ensuring a perfect fit for your needs. The VFD Twin servo mount locations are integrated into the chassis.

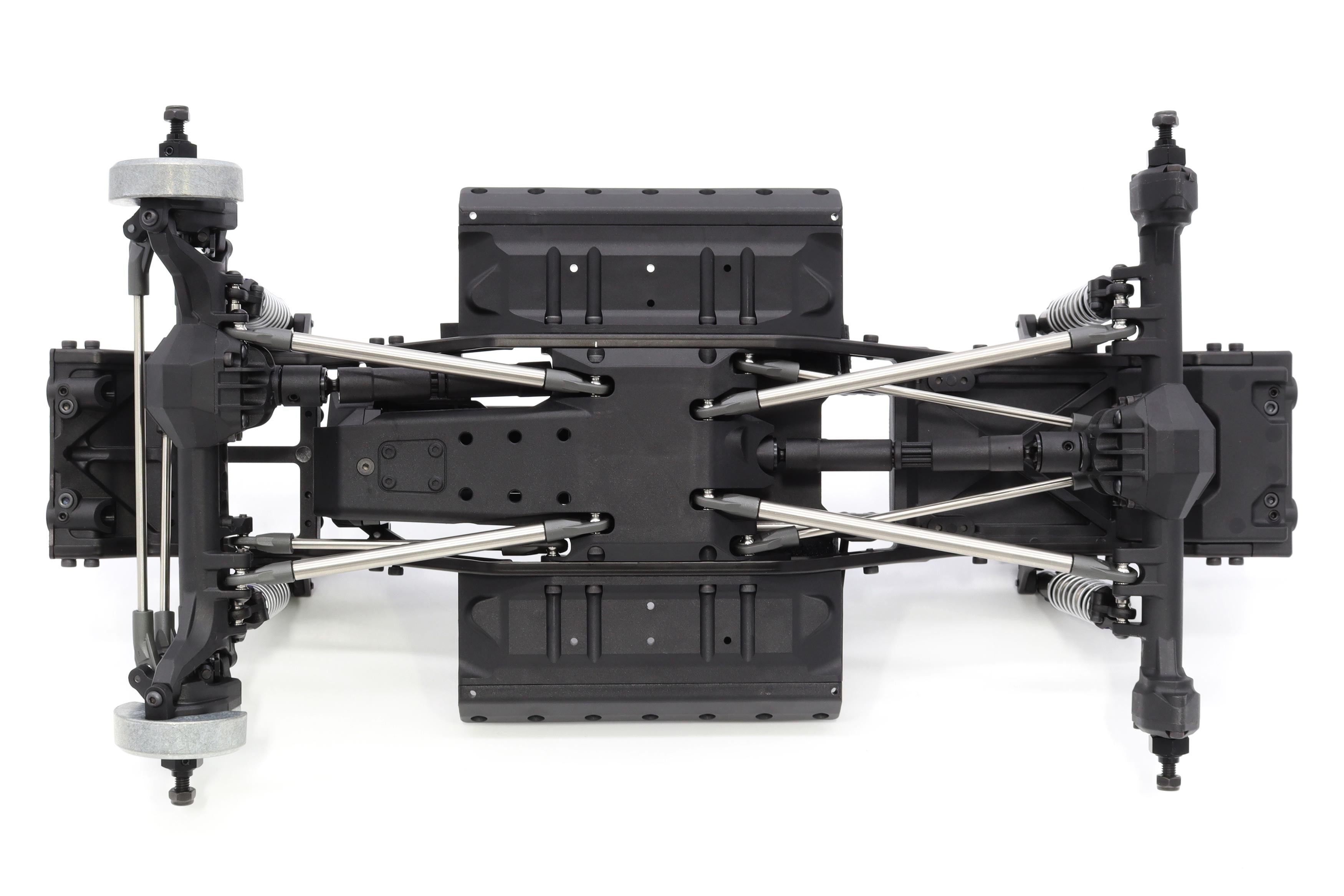

VS4-10 Chassis
The Vanquish Products VS4-10 Chassis combines scale looks with high performance. Its steel C-channel design offers scale detail and strength, featuring dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders have a replaceable tapered outer portion. The machined aluminum panhard mount withstands severe trail impacts. Molded shock towers secure the 80mm Incision S8E Shocks. Pro rod ends are also included.
VS4-10 CHASSIS DETAILS
The VS4-10 Chassis brings unmatched rigidity, superior build quality, and a versatile design, making it a popular choice for a wide range of projects.

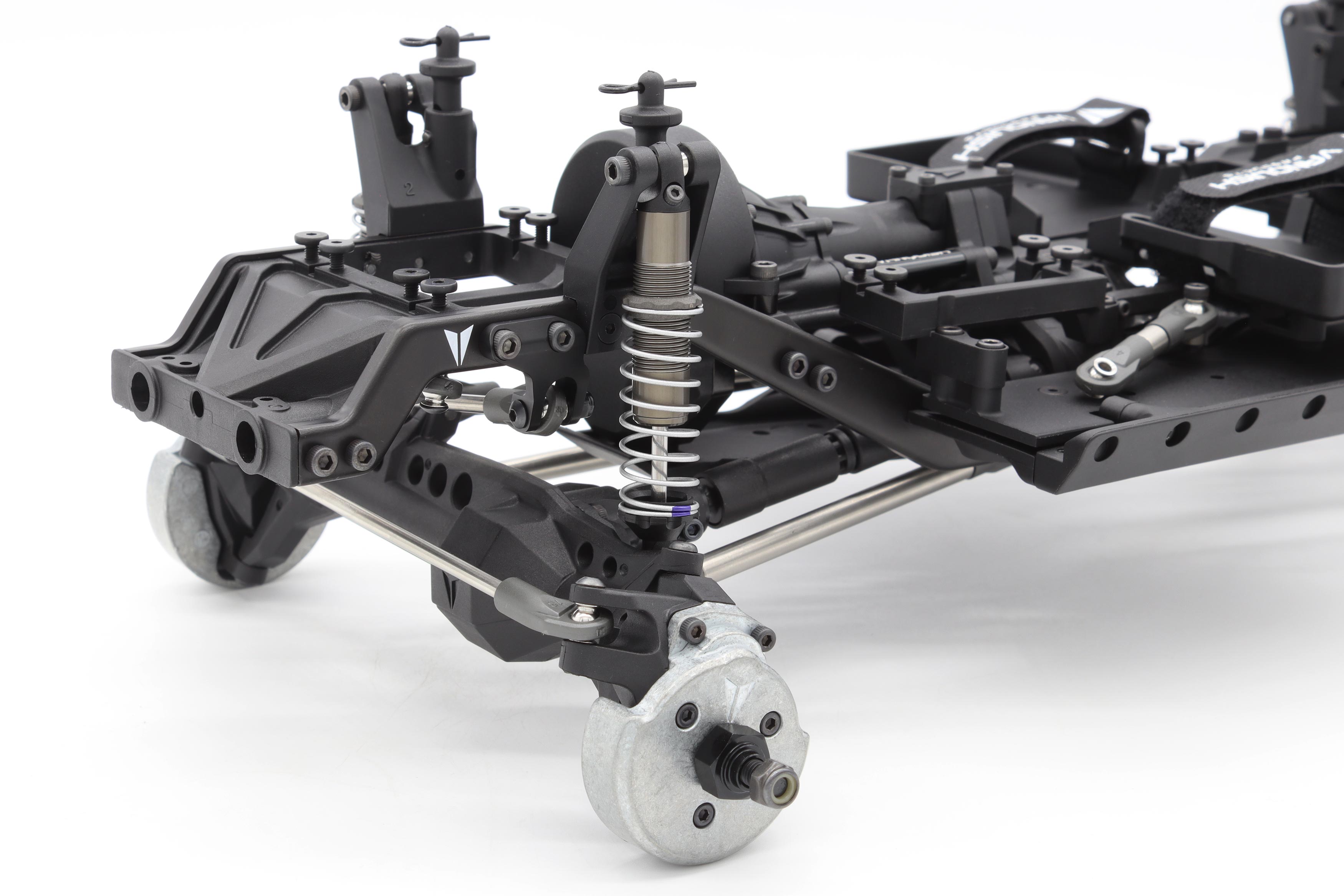

Suspension
The VS4-10 features Incision 80mm S8E shocks with 8mm bore hard anodized aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension offers scale looks by hiding the servo, while allowing full suspension travel. Stainless steel links ensure low weight and durability.
Strength and Capability
A proven combination of 3-link with panhard front suspension and triangulated rear suspension will allow your custom project to perform as good as it looks. The high clearance chassis and 80mm S8E shocks will give you the flexibility and predictability to conquer the terrain.
5.25:1 Axle Gear Ratio
15T Pinion
52T Spur Gear
Overall Width Hex to Hex – 200mm (7.87”)
Wheelbase: 313mm (12.3″)
Overall Front Ratio (Standard 6.5% OD): 53.7:1
Overall Front Ratio (High 46% OD): 35.8:1
Overall Rear Ratio: 57.2:1
