Description
Unassembled Builders Kit
Wheels, Tires, Body and Bumpers are not included. See information below.
TRAIL
DEFINE YOUR OWN PATH
F10 AXLES
SCALE STYLE WITH PERFORMANCE
VFD
VERSITILE AND PROVEN TRANSMISSION
F10 STRAIGHT AXLES
The F10 Straight Axles are widely praised for their exceptional durability, precise engineering, and smooth performance, making them a top choice among enthusiasts.
Drivetrain
The VS4-10 Builders Kit includes the Vanquish Products VFD transmission and F10 straight axles. The F10 axles feature a high clearance design, minimizing pumpkin size and maximizing strength around the C-hub and knuckle. The ISD10 driveshafts connect the VFD to the F10 axles, featuring machined CV joints and molded splined shafts for smooth, efficient performance.
VS4-10 DRIVETRAIN
VFD TRANSMISSION
OVERDRIVE TRANSFER CASE
UNIVERSAL JOINT AXLE SHAFTS
SECURE BATTERY STORAGE
The versatile battery tray accommodates most batteries, including hard case LiPo and standard stick pack sizes, ensuring a perfect fit for your needs.

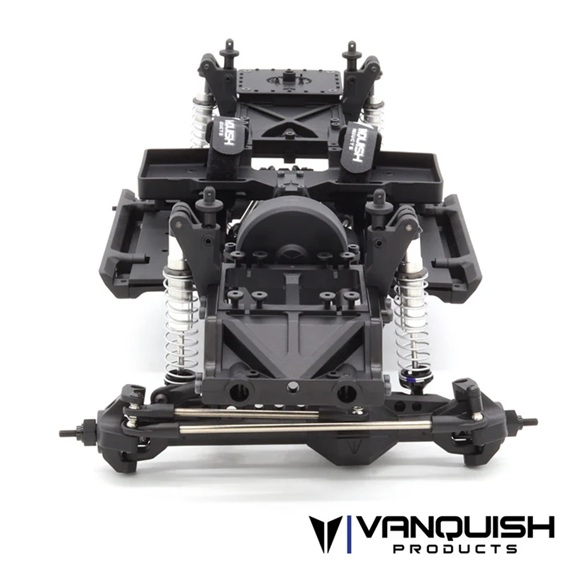

VS4-10 Chassis
The Vanquish Products VS4-10 Chassis combines scale looks with high performance. Its steel C-channel design offers scale detail and strength, featuring dual servo mounts, winch line routing, and a fuel cell. The molded rock sliders have a replaceable tapered outer portion. The machined aluminum panhard mount withstands severe trail impacts. Molded shock towers secure the 90mm Incision S8E Shocks.
VS4-10 CHASSIS DETAILS
The VS4-10 Chassis brings unmatched rigidity, superior build quality, and a versatile design, making it a popular choice for a wide range of projects.

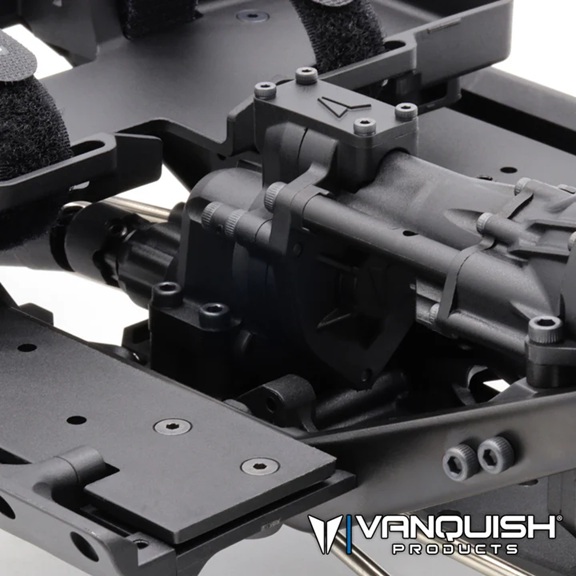

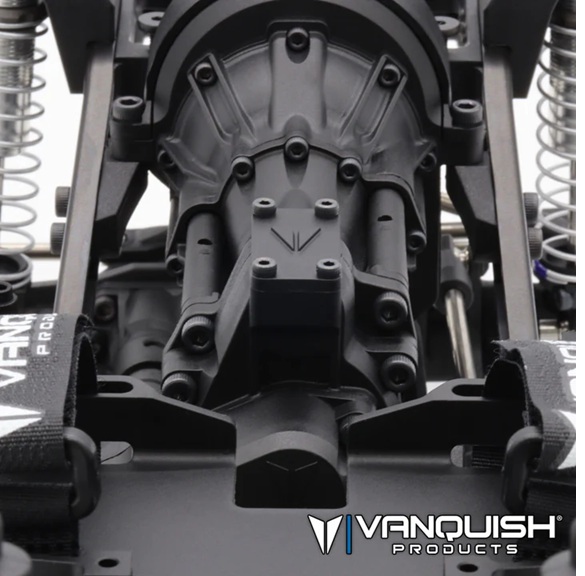

VFD Transmission
The VFD is designed for optimal performance, scale appearance, strength, and versatile accessories. It positions the motor forward and low for ideal weight distribution. The VFD Spec transmission offers a 6.5% overdrive for improved turning and climbing without stressing electronics. The T-case features replaceable bearing plates for adjustable positioning and optional gear ratios. Compatible with 540 brushed and brushless motors*.
Strength and Tunability
The VFD transmission has wide metal gears inside for strength in the areas that count. The option to build the VFD transmission with a variety of option parts allows you to tune the performance to your needs.

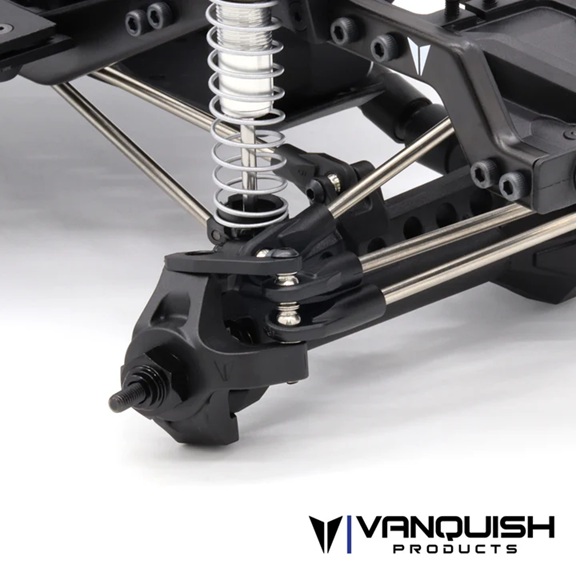

Suspension
The VS4-10 features Incision 90mm S8E shocks with 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons. The front 3-link with panhard suspension offers scale looks by hiding the servo, while allowing full suspension travel. Stainless steel links ensure low weight and durability.
Strength and Capability
A proven combination of 3-link with panhard front suspension and triangulated rear suspension will allow your custom project to perform as good as it looks. The high clearance chassis and 90mm S8E shocks will give you the flexibility and predictability to conquer the terrain.
1/10th Scale
3.75:1 Axle Gear Ratio
13T Pinion
56T Spur Gear
Wheelbase: 313mm (12.3″)
Overall Front Ratio: 47.6:1
Overall Rear Ratio: 50.8:1
Front axle width pin to pin: 182mm (7.17″)
Rear axle width pin to pin: 182mm (7.17″)
